Designator Description Value, Type
R1, R2, R3, R4, R5 Resistor 330 OHM, 5%, 0.25 watt
D1 Diode IN4001
U1, U2, U3, U4  Flasher FCC92
U5 Driver MC1413
LED 1 to LED 21 Light-emitting diode 5 colors

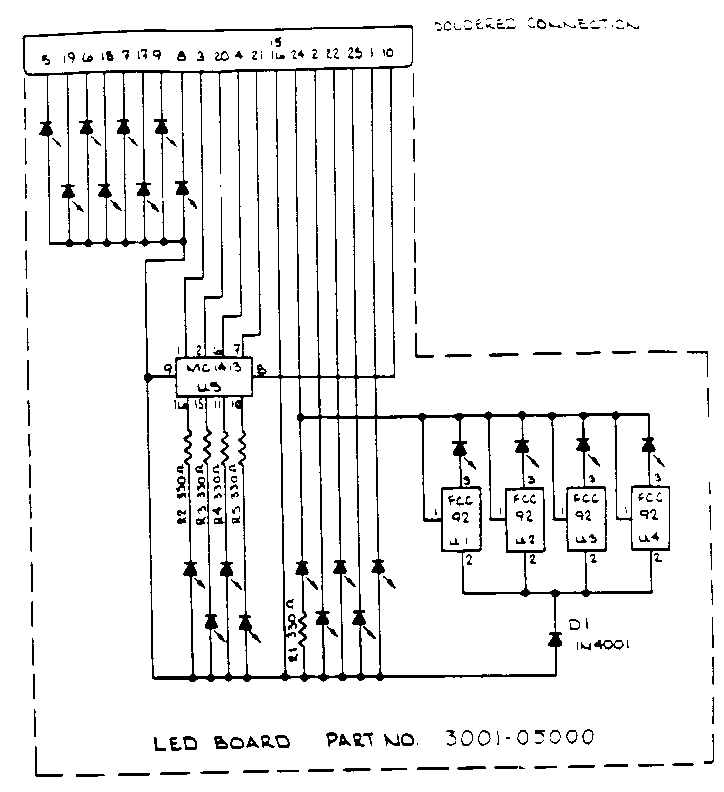

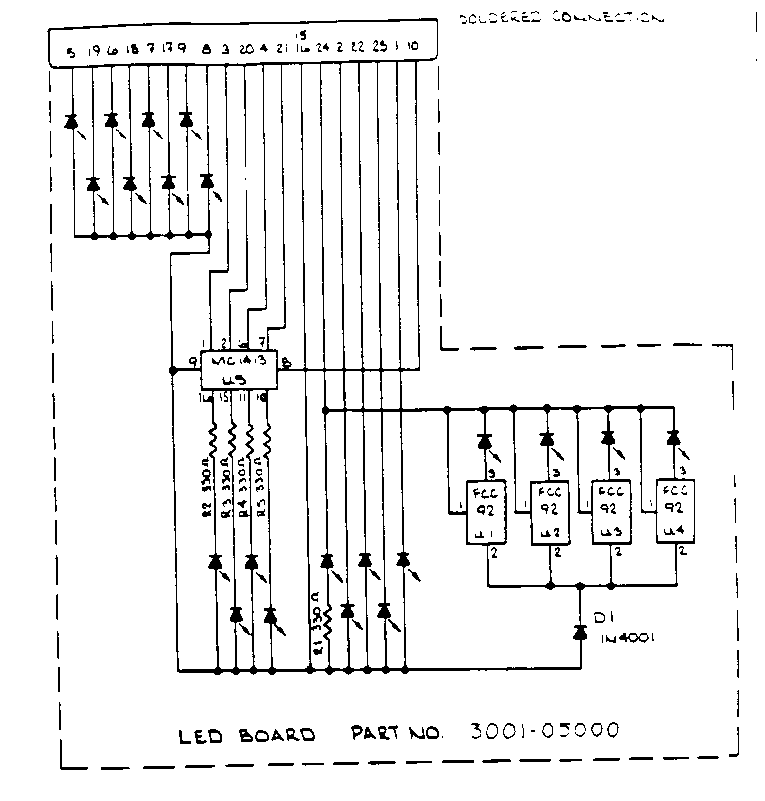

Schematic
